Navigating the Challenges of Composite Part Production in High-Precision Industries

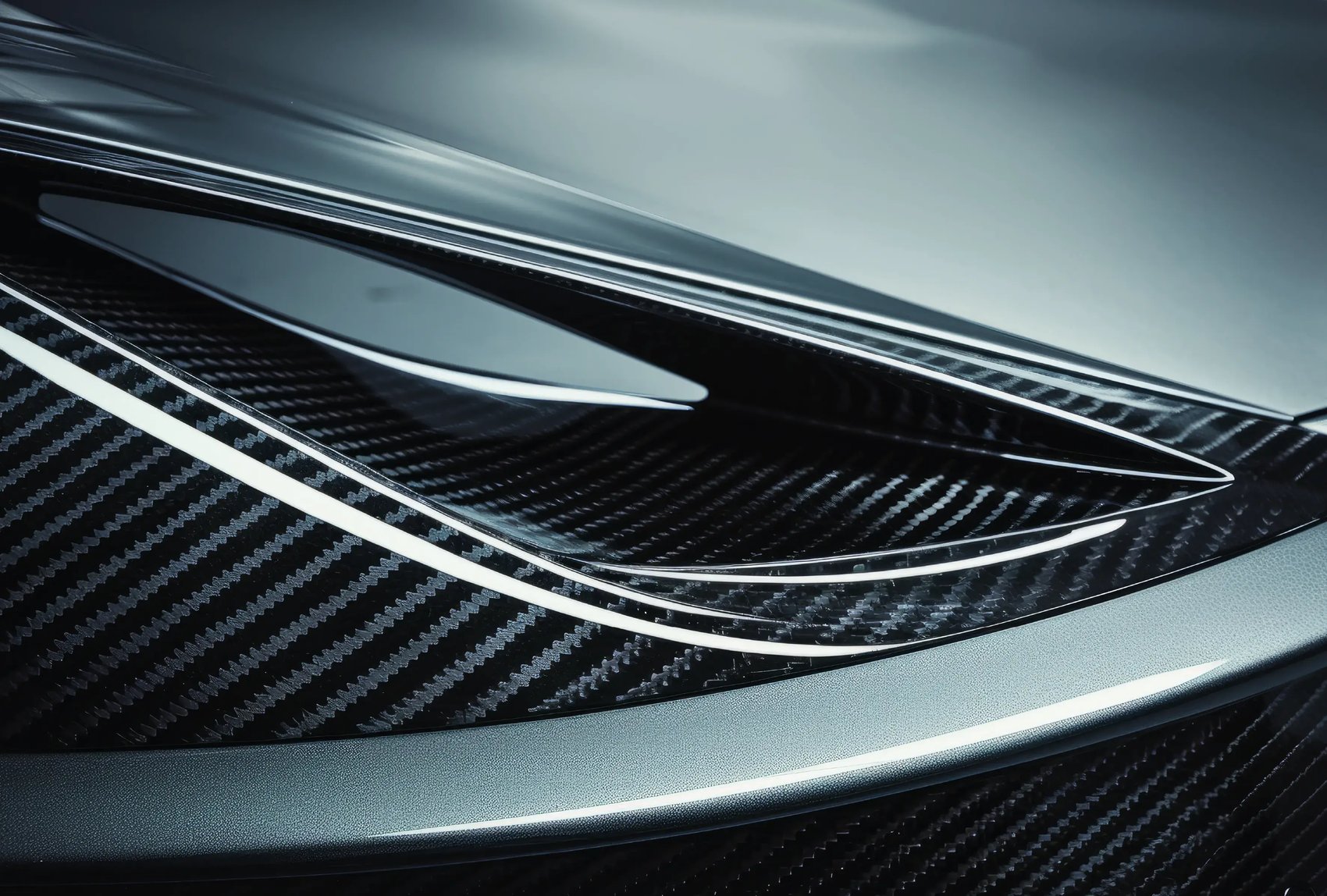

In the world of advanced manufacturing, composite materials have revolutionized the way we think about strength, weight, and design flexibility. From aerospace winglets to Formula 1 front wings, composites offer unparalleled performance advantages. But along with these benefits come unique challenges—particularly when it comes to composite part production.
Why Composite Parts Are Difficult to Machine
Unlike metals, composite materials are anisotropic and layered. This means they behave differently depending on the direction of applied force, and their structure isn’t uniform throughout. During manufacturing processes such as curing and cooling, composites often distort. These distortions make it incredibly difficult to align the part accurately on a machine tool, especially if you’re relying on traditional fixturing and manual setups.
In industries like defence, aerospace, and motorsport, even a minor machining error can result in expensive scrap, rework, or—worse—failure in critical performance conditions.
The Limits of Manual Setup
Historically, machinists have relied on experience and physical adjustment to align distorted parts. This often involves bending or forcing the component into a fixture so it appears correctly aligned—an approach that introduces stress and compromises precision.
Even when using high-end CNC machines, if the part isn’t perfectly aligned in its natural, distorted state, you’re essentially machining in the wrong place.
- Incorrect feature depths (like countersinks or counterbores)
- Part-to-part variability
- High levels of waste and rework
- Time-consuming and inconsistent setups
Data-Driven Setup: A Smarter Approach
Modern composite part production demands smarter, data-driven solutions. One such approach is using automated probing to align parts based on their actual shape, not just the CAD model.
Software tools such as MSP’s PerfectPart system enable machinists to measure the part’s position and geometry directly on the machine using probes. This data is used to:
- Detect distortion and offset from the intended geometry
- Automatically correct alignment inside the machine
- Enable repeatable, fixture-independent setups
This removes the guesswork from setup, reduces operator dependency, and ensures that critical features are machined accurately—even if the part has warped slightly during production.
Beyond Accuracy: The Bigger Picture
The advantages of intelligent part alignment go beyond just hitting tighter tolerances. Industries adopting this methodology report:
- Zero scrap and rework on complex composite parts
- Micron-level precision on functional features
- Simple fixtures that reduce setup costs
- Faster throughput with reduced downtime and labor
In a Formula 1 application, for example, part setup time was reduced by an impressive 9.5 hours, allowing engineers to focus on performance—not production bottlenecks.
What’s Next for Composite Manufacturing?
As materials science and product design continue to evolve, the pressure is on manufacturers to keep pace. Composite part production is no longer just about cutting-edge materials—it’s about the digital integration of measurement, feedback, and control in every step of the machining process.
Automation and in-process verification are no longer “nice to have”—they’re essential tools for ensuring quality and competitiveness in high-precision industries.
